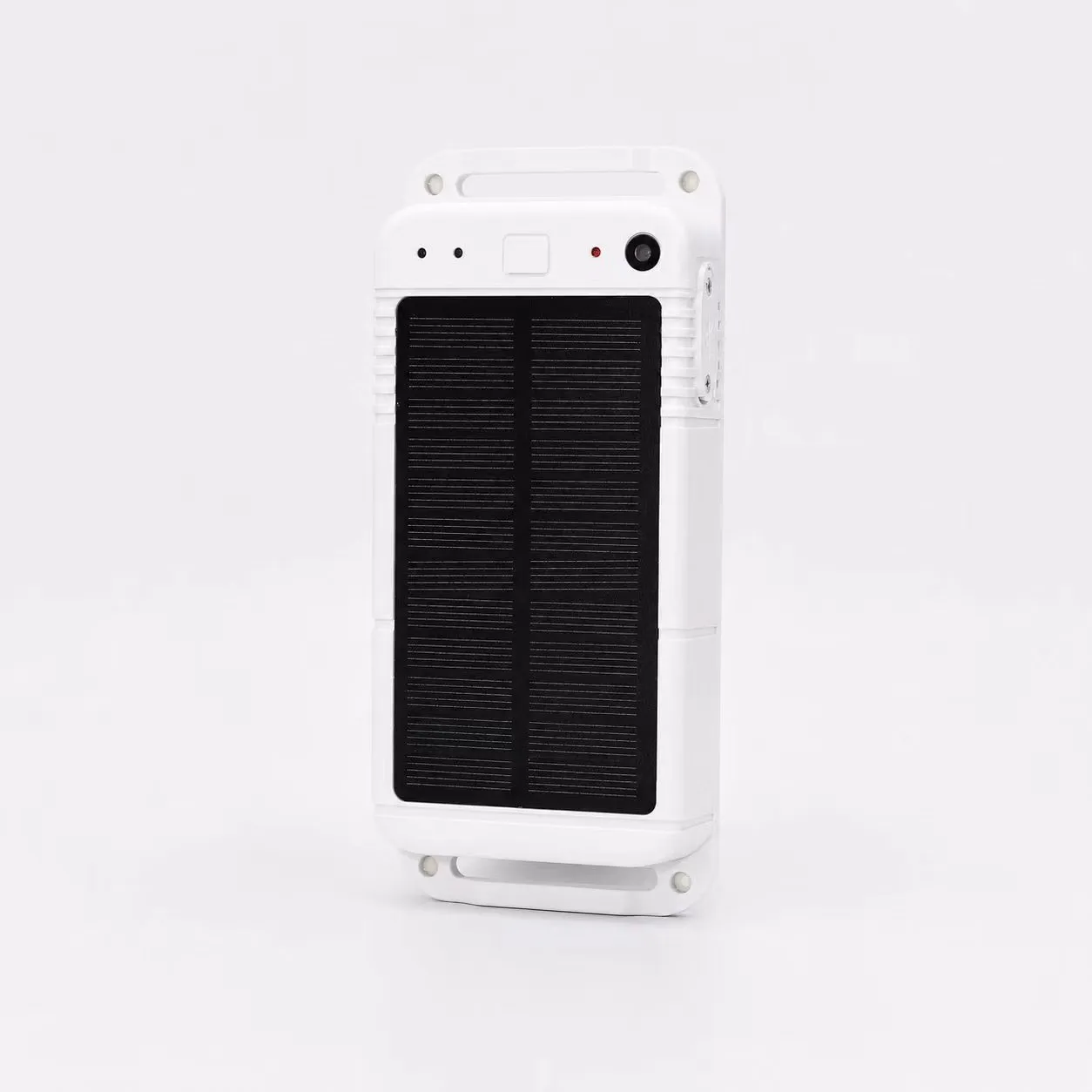

V26 Solar-Powered GPS Positioning Terminal
The V26 is a solar-powered, self-charging industrial-grade 4G global satellite locator. It features a high-efficiency solar photovoltaic panel and a 7500mAh high-capacity lithium battery, eliminating the need for frequent manual charging. It has a built-in strong magnet for concealed attachment, is IP67 waterproof.
Product Description
It supports GPS/BeiDou/Galileo/GLONASS four-satellite fusion positioning with an accuracy of <2 meters. It offers three power saving modes: deep power saving, intelligent power saving, and real-time tracking. A built-in three-axis accelerometer provides a full suite of alarms for collisions, rapid acceleration/deceleration, overspeeding, tampering, and SOS. It supports WEB FOTA remote upgrades and has multiple export certifications including CE/FCC/UKCA. Designed specifically for vehicles/construction machinery/containers parked outdoors for extended periods without an external power source, it completely solves the problem of battery life and charging. Key Selling Points ● Solar-powered self-charging , 6V high-efficiency photovoltaic panel, automatically replenishes power under outdoor sunlight, eliminating the need for frequent manual charging during long-term use.● 7500mAh high-capacity lithium battery + Level 3 ultra-low power consumption, deep sleep mode with only 90uA, can provide 3 years of continuous standby time with 2 daily power consumption.● Global four-satellite fusion positioning, positioning accuracy <2 meters CEP, fast satellite acquisition speed, and no trajectory drift even in weak signal conditions in the field/elevated areas.● IP67 fully waterproof and dustproof, ensuring stable operation in harsh outdoor environments such as rainy days, construction sites, and the seaside.● Built-in powerful permanent magnets, no drilling or wiring required, directly adsorbed onto the chassis of trucks and construction equipment for concealed installation.● Comprehensive vehicle activity alerts: Disassembly, collision, sudden braking, sudden acceleration, sharp turn, speeding, SOS emergency assistance, low battery warning.● Local cache of up to 10,000 track records; automatic saving of track points when there is no signal in tunnels/basements; batch retransmission upon network recovery.● Globally compatible 4G LTE bands, CE/FCC/UKCA full set of export certifications, universally applicable for foreign trade and cross-border equipment.● Multi-channel remote operation and maintenance: web-based configuration tools, FOTA remote upgrades, SMS, and parameter distribution from the management platform.
Core Competitive Advantages: Automatic solar power replenishment system + three-level intelligent low-power management, enabling maintenance-free, long-term unattended operation.
● The photovoltaic self-charging unit integrates a 6V/90mA high-efficiency solar panel. When the equipment is parked outdoors, natural light continuously replenishes the 7500mAh battery, greatly reducing the frequency of manual charging. It is suitable for trucks, agricultural machinery, and containers that are parked outdoors all year round, without the need for frequent disassembly and charging.
● Three switchable power consumption modes to balance battery life and real-time performance as needed.
√ Deep power saving mode: The power consumption of the whole machine is as low as 90uA, the location is uploaded only twice a day, and it can be used continuously for up to 3 years by relying on solar self-circulation;
√ Intelligent power-saving mode: 0.8mA online sleep mode, approximately 80 days of battery life with 2 hours of daily driving, and automatic power replenishment in sunlight to extend the service life;
√ Real-time tracking mode: 19mA continuous online, high-frequency positioning of the vehicle throughout its journey, suitable for real-time monitoring of long-haul freight.
Fully Equipped
● The global quad-mode high-precision satellite positioning is compatible with the four major satellite systems: GPS, BDS, Galileo, and GLONASS. The tracking sensitivity is -165dB, and the acquisition sensitivity is -159dB. The hot start time is less than 1 second, and the cold start time is less than 24 seconds. The positioning error in open areas is controlled within 2 meters, and the positioning is accurate and without deviation in the wild, forest, and elevated obstruction environments.
● Comprehensive security alert system
√ Light-sensitive tampering alarm: If the equipment is lifted or removed, a tampering alarm will be pushed immediately to prevent the mortgaged equipment from being removed and losing contact.
√ Three-axis acceleration behavior recognition: automatic reporting of collisions, emergency braking, rapid acceleration, sharp turns, and speeding;
√ SOS one-click emergency alarm, low battery voltage warning, and abnormal information are simultaneously pushed to the management platform.
● IP67 industrial protection + strong magnetic concealed installation: the whole unit is waterproof and dustproof, and will not be damaged by rain, mud, sand, or humid environments; the back has a built-in strong magnet, which can be directly attached to the bottom of the metal vehicle body. Installation and removal can be completed in 10 seconds without tools or cutting wires.
● Offline trajectory caching and retransmission features built-in large-capacity local storage, capable of caching up to 1000 trajectory points. It automatically saves data when a vehicle enters a tunnel or underground parking garage where there is no network, and uploads the entire data at once after 4G signal is restored, ensuring zero loss of trajectory data.
● The global communication and remote batch operation and maintenance system has two hardware versions: standard frequency band and North American frequency band, covering operators in Eurasia and the Americas. It supports web configuration, FOTA remote firmware upgrade, and SMS command parameter modification, enabling large-scale fleet remote unified debugging without offline disassembly.
Application Scenarios
● Long-term asset theft prevention for outdoor construction machinery, agricultural machinery, and forklifts; no manual charging required.
● Long-term offline solar tracking for sea/land transport containers and freight trailers.
● Overseas trucks, lorries, and RVs in remote areas without power sources: concealed location monitoring.
● Auto finance provides long-term risk control for heavy trucks and construction vehicles, reducing charging and maintenance costs.
● 24/7 Track Monitoring of Equipment and Large Outdoor Materials in Open-Pit Mines.
● Long-term unattended location tracking for cross-border logistics, overseas leased vehicles, and agricultural equipment
