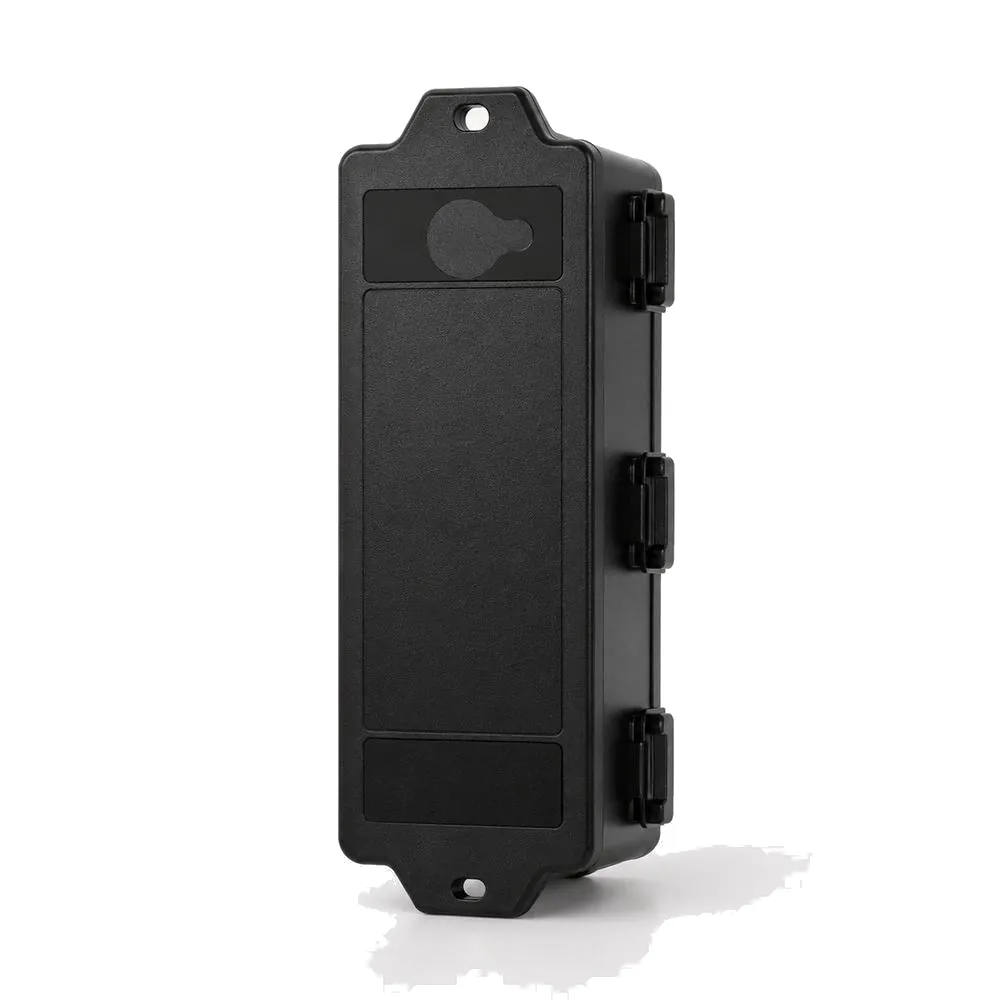

V12 Long Standby GPS Tracker
The V12 is an ultra-long standby positioning terminal based on 4G CAT1 communication. With built-in 4,200 mAh and 9,600 mAh lithium-manganese battery options it runs for roughly 3 to 5 years on a single positioning per day, while the integrated magnet and IPX7 housing suit containers, trailers, vehicles and fixed assets.
Product Overview
The V12 is an ultra-long standby positioning terminal based on 4G CAT1 communication. With built-in 4,200 mAh and 9,600 mAh lithium-manganese battery options it runs for roughly 3 to 5 years on a single positioning per day, while the integrated magnet and IPX7 housing suit containers, trailers, vehicles and fixed assets.
Years, not months
A large lithium-manganese pack and 10 μA sleep current deliver multi-year unattended service.
Attach and forget
Strong magnets mount it to vehicles, containers and equipment in seconds without tools.
Finance and fixed assets
Purpose-built for risk control portfolios and long-lived fixed asset registers.
Specifications
| Network | 4G CAT1 + 2G |
| 2G Frequency | 850 / 900 / 1800 / 1900 MHz |
| 4G Frequency Bands | B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| Positioning | BeiDou + GPS + WiFi + LBS |
| GPS Chip | AT6588R |
| Satellite Channel | 66 |
| Location Accuracy | <= 5 m |
| Tracking Sensitivity | -162 dBm |
| GPS Sensitivity | -144 dBm |
| Hot Start | < 2 s |
| Warm Start | < 15 s |
| Cold Start | < 38 s |
| Built-in Battery | 4,200 mAh / 9,600 mAh lithium-manganese (optional) |
| Standby Current | <= 10 μA |
| Standby Time | 3 - 5 years (positioning once a day) |
| Size | 113.8 x 50.6 x 30.6 mm |
| Weight | 219 g |
| Waterproof | IPX7 |
| Antenna | Spring GSM antenna, built-in ceramic GPS antenna |
| Working Temperature | -20°C to 70°C |
Application Scenarios
See how the A3 4G wired GPS tracker delivers value across industries.
Automotive finance risk control、 Fixed asset management、 Valuable item management、 Container & trailer tracking、 Logistics transportation、 Long-term asset deployment
